maximum servo performance in a minimum size package

Digitax HD Servo Drive

Control Techniques

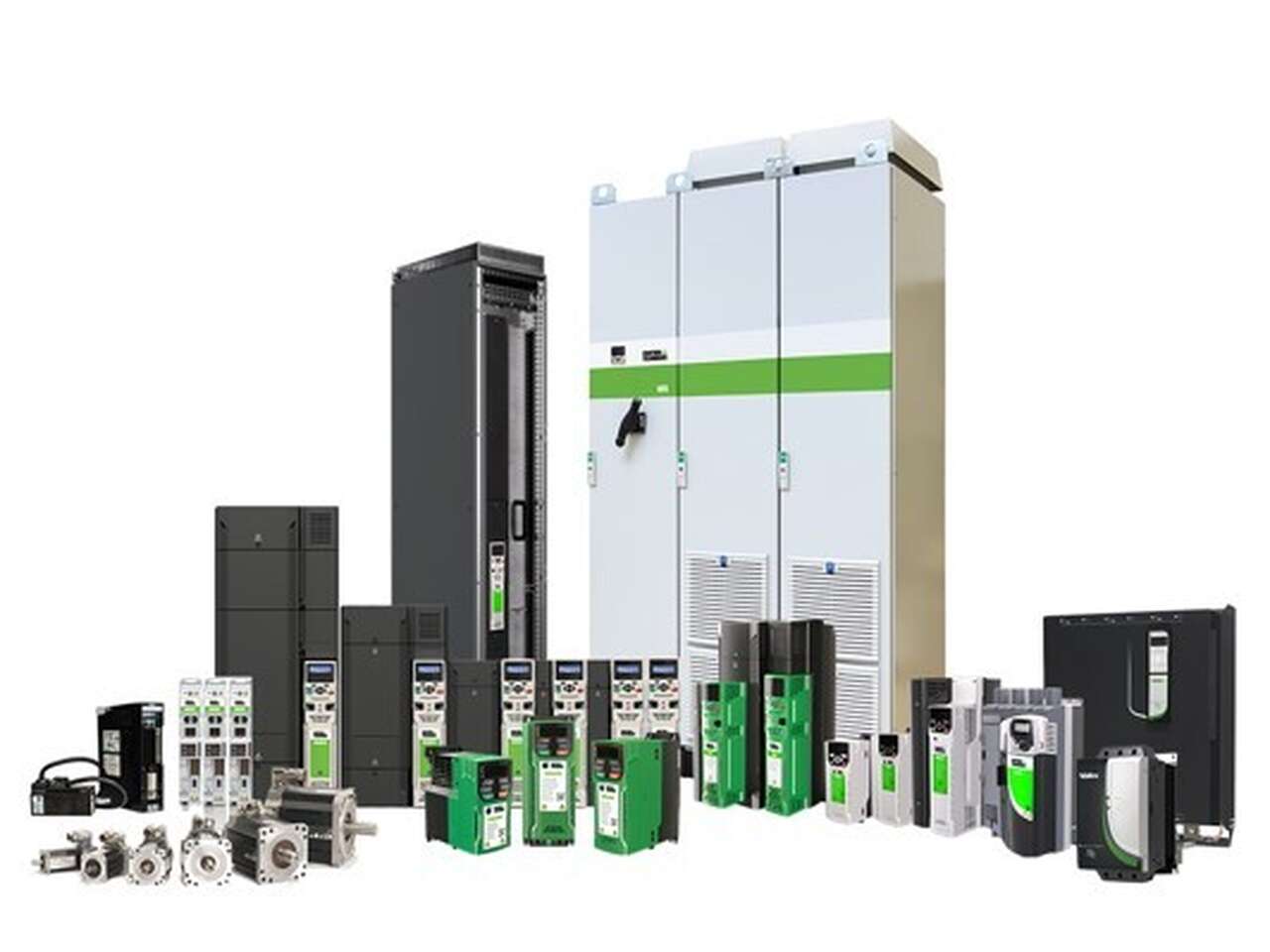

Control Techniques' AC drives provide world-class solutions to a wide range of applications and industries. AC drives also known as variable frequency drives (VFD), variable speed drives (VSD), adjustable-speed drives or inverter drives also referred to as motor controls.

Control Techniques drives offer:

  • Wide power and voltage ranges with advanced motor control

  • Extendable through a large range of option modules

  • Compact with onboard programming and motion control

  • Robust design for long and reliable service

Digitax HD Servo Drive Series

Minimum size, maximum performance

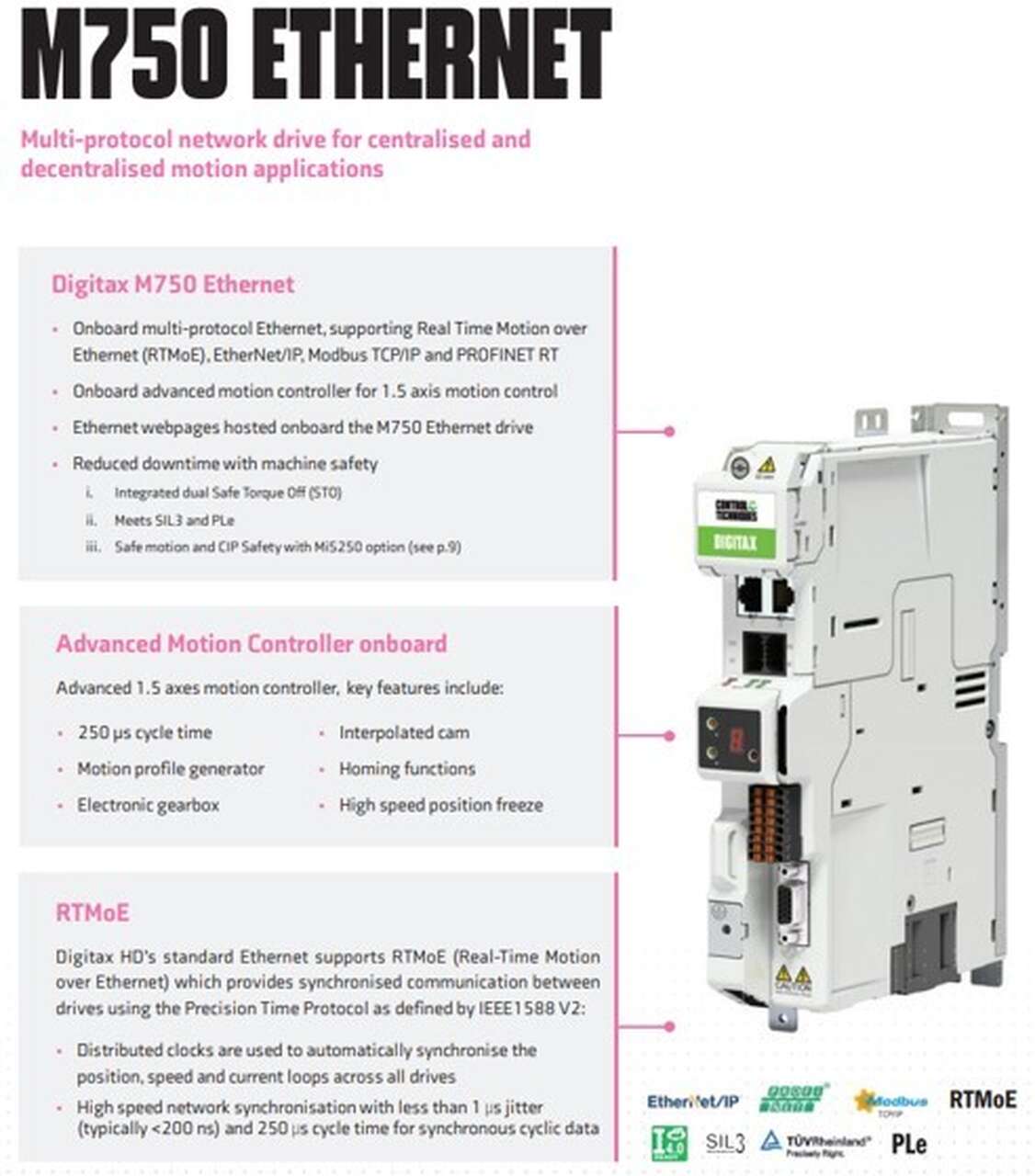

The Digitax HD servo drive series extends the Unidrive M range with maximum servo performance in a minimum size package. Optimized for high-dynamic applications, Digitax HD provides the flexibility of both standalone and modular configurations. The drive offers full servo control plus open loop permanent magnet motor and induction motor control across four functionality levels: EtherCAT, MCi machine control, Ethernet and the flexible Base servo drive.

Minimal footprint and exceptional power density make Digitax HD one of the smallest servo drives on the market today. This means that you can build the most compact cabinets possible.

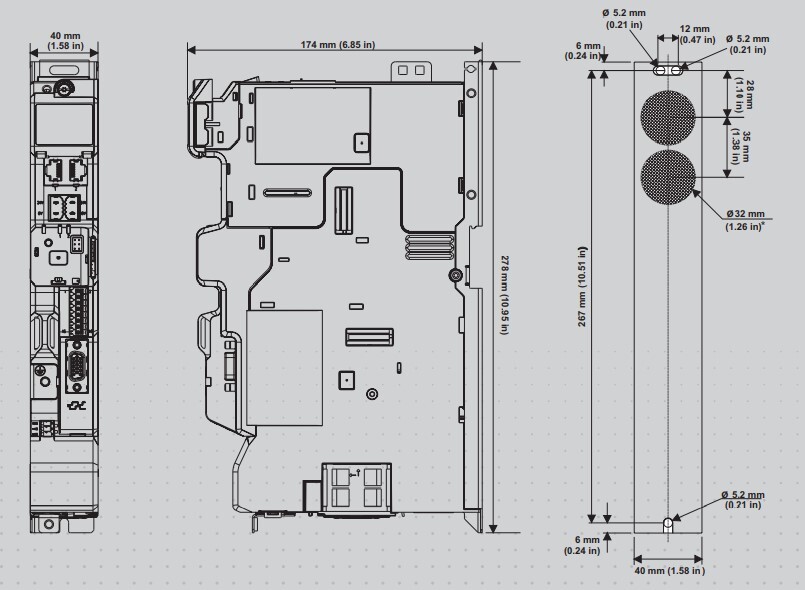

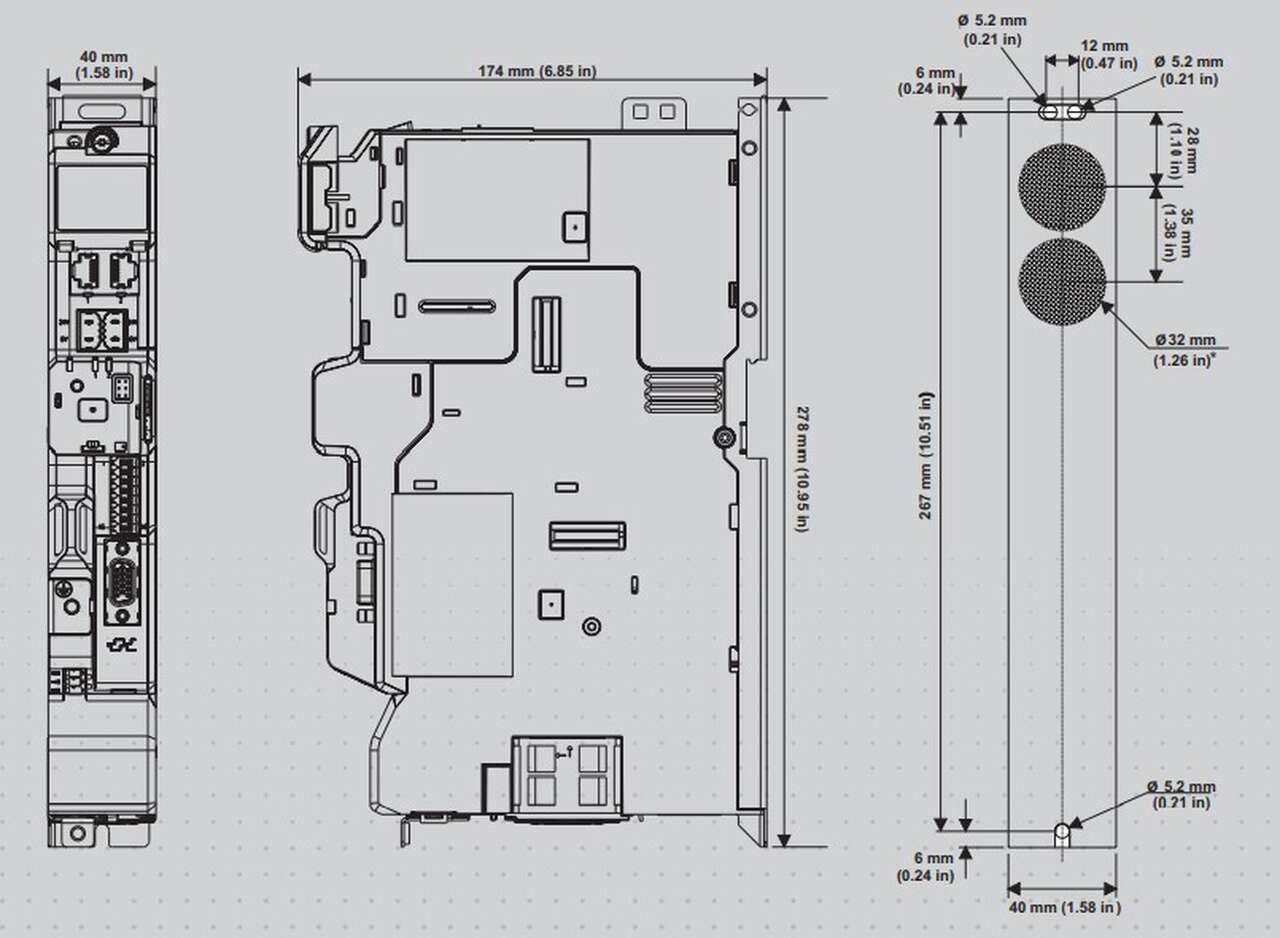

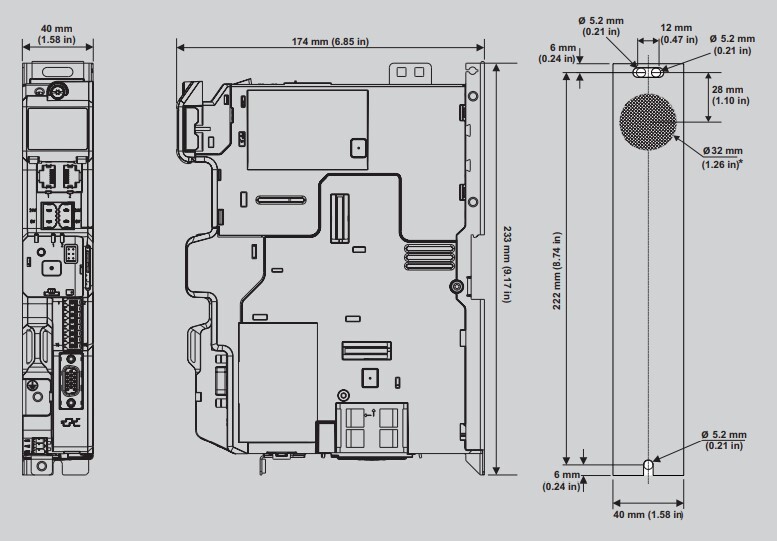

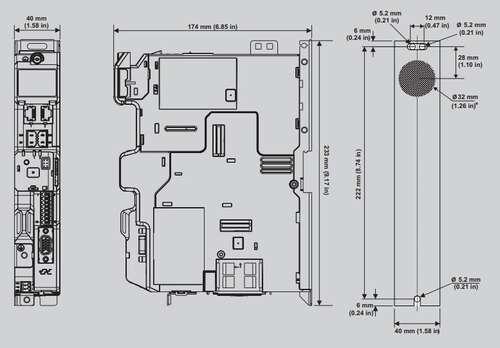

  • Drive width of only 1.6 inches (40 mm)
  • Reduce cabinet height with UltraFlow™ technology which dissipates heat directly outside of the cabinet
  • Install Digitax HD in a cabinet just 200mm deep


  • Boost throughput with maximum motion control

Optimized for high-dynamic applications and with high speed control loops, Digitax HD is one of the best performing servo drives on the market today. This means maximum throughput and product quality from your machines.

  • 300% peak current performance pulse-duty overload
  • Optimized control loops for high dynamic performance
  • Up to 16 kHz switching frequency
  • Rapid installation and commissioning from standalone to a modular servo system

Digitax HD servo series can be used standalone and is also fast and easy to set up as a modular system.

  • Single AC input, 24 V and communication links, and common DC bus
  • DIN rail alignment, single cable technology and easy access pluggable connectors
  • Fast programming and commissioning PC tools

Digitax HD offers integrated dual Safe Torque Off (STO) inputs, certified to SIL3 / PLe, providing an elegant and more reliable solution over traditional motor contactors

Options:

Digitax HD supports a range of communications, I/O, feedback and machine control option modules.

Quote request

Quote request Digitax HD Servo Drive

Request more information

Request more information about Digitax HD Servo Drive

Download datasheet
Details / Specifications / Documents

Details

Digitax HD Servo Drive

maximum servo performance in a minimum size package; 1.5 A – 16 A with 48 A peak; 200 V | 400 V; 0.25 kW - 7.5 kW


1 phase 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M750-012-000220,18 kW1,1 AM750-01200022A10100AB101
M750-012-000400,37 kW2,2 AM750-01200040A10100AB101
M750-012-000650,75 kW3,5 AM750-01200065A10100AB101
Type (frame 2)powerNominal currentpart nr.
M750-022-000901,1 kW5,6 AM750-02200090A10100AB101
M750-022-001201,5 kW7,5 AM750-02200120A10100AB101
Type (frame 3)powerNominal currentpart nr.
M750-032-001602,2 kW10,8 AM750-03200160A10100AB101




3 phase 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M750-012-000220,37 kW2,2 AM750-01200022A10100AB101
M750-012-000400,75 kW4,0 AM750-01200040A10100AB101
M750-012-000651,1 kW6,5 AM750-01200065A10100AB101
Type (frame 2)powerNominal currentpart nr.
M750-022-000902,2 kW9,0 AM750-02200090A10100AB101
M750-022-001202,2 kW12,0 AM750-02200120A10100AB101
Type (frame 3)powerNominal currentpart nr.
M750-032-001604,0 kW16,0 AM750-03200160A10100AB101

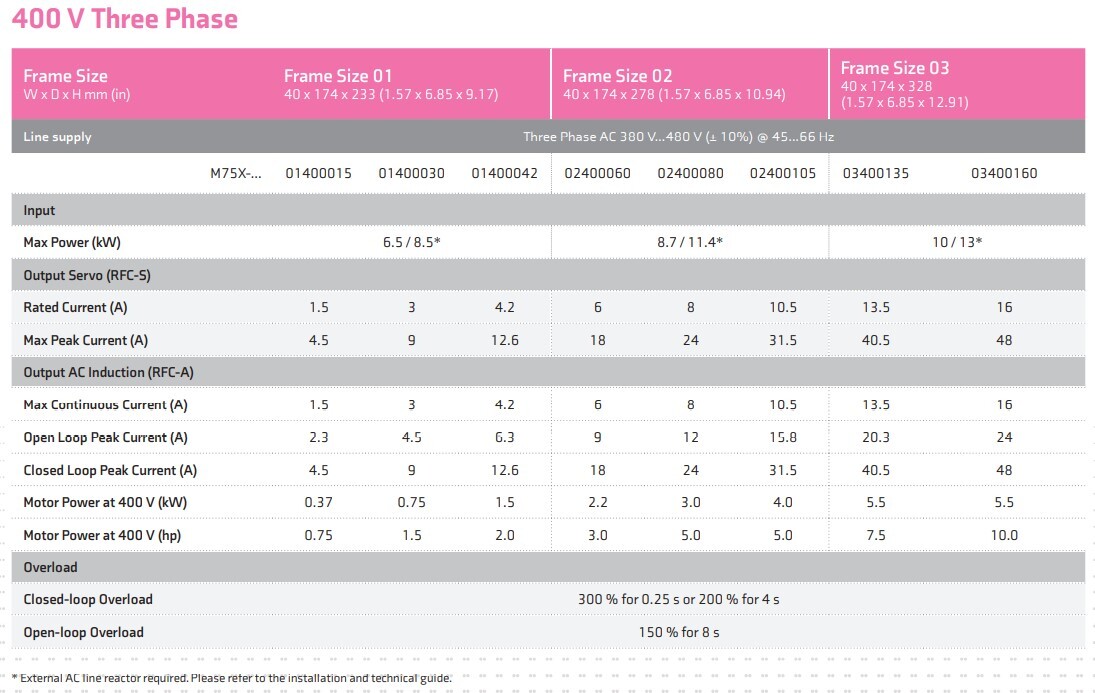

3 phase 380 - 480 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M750-014-000150,37 kW1,5 AM750-01400015A10100AB101
M750-014-000300,75 kW3,0 AM750-01400030A10100AB101
M750-014-000421,5 kW4,2 AM750-01400042A10100AB101
Type (frame 2)powerNominal currentpart nr.
M750-024-000602,2 kW6,0 AM750-02400060A10100AB101
M750-024-000803,0 kW8,0 AM750-02400080A10100AB101
M750-024-001054,0 kW10,5 AM750-02400105A10100AB101
Type (frame 3)powerNominal currentpart nr.
M750-034-001355,5 kW13,5 AM750-03400135A10100AB101
M750-034-001605,5 kW16,0 AM750-03400160A10100AB101

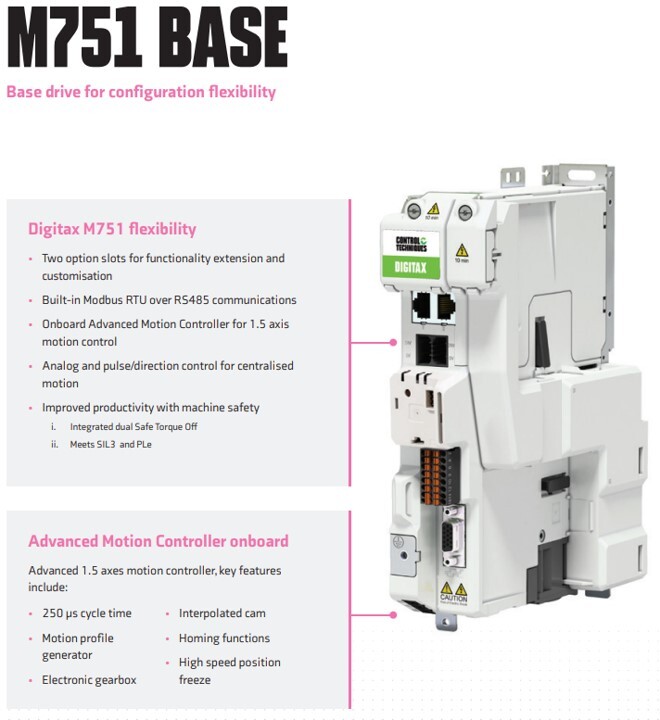

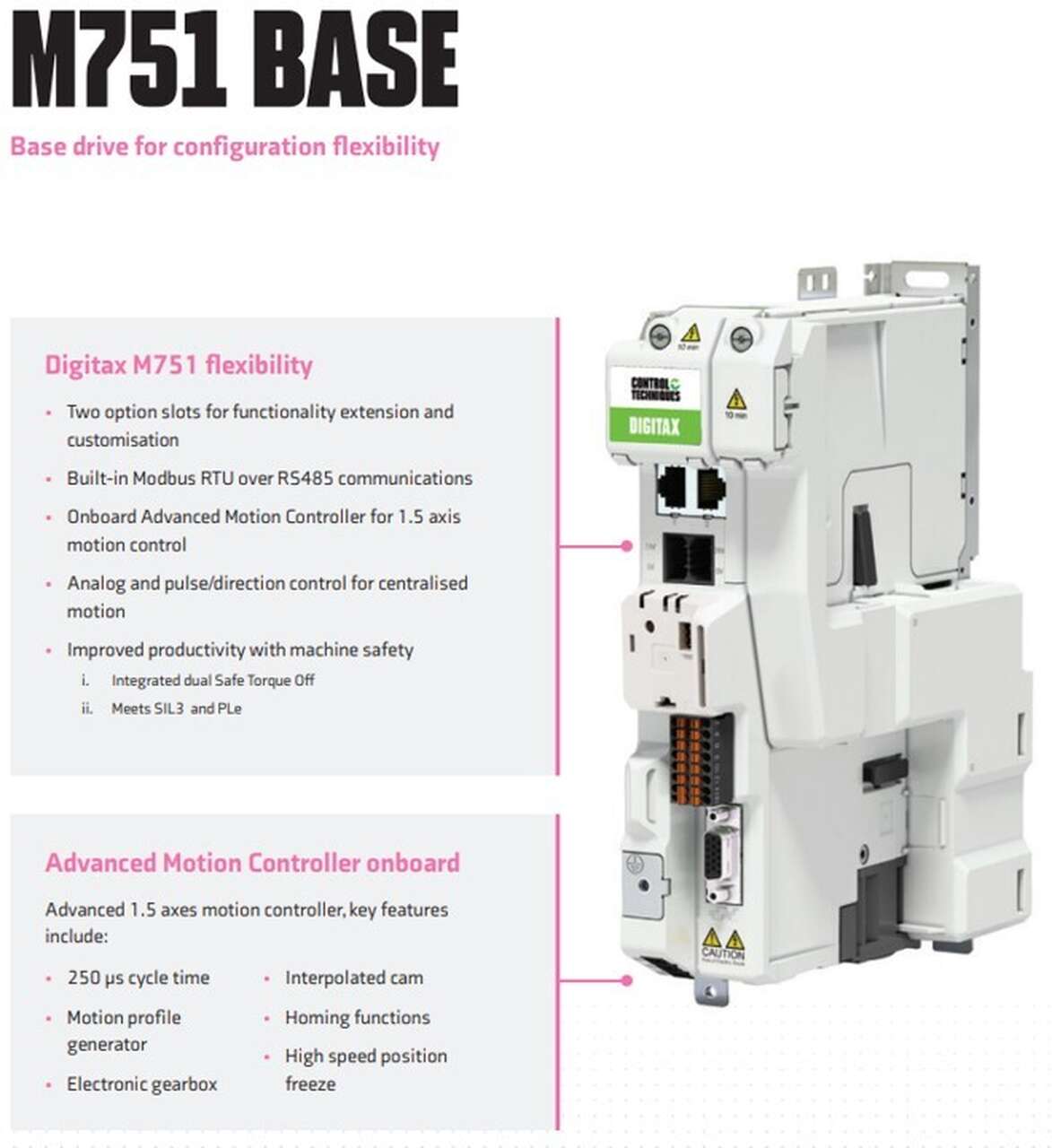

1 phase 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M751-012-000220,18 kW1,1 AM751-01200022A10100AB110
M751-012-000400,37 kW2,2 AM751-01200040A10100AB110
M751-012-000650,75 kW3,5 AM751-01200065A10100AB110
Type (frame 2)powerNominal currentpart nr.
M751-022-000901,1 kW5,6 AM751-02200090A10100AB110
M751-022-001201,5 kW7,5 AM751-02200120A10100AB110
Type (frame 3)powerNominal currentpart nr.
M751-032-001602,2 kW10,8 AM751-03200160A10100AB110




3 phase 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M751-012-000220,37 kW2,2 AM751-01200022A10100AB110
M751-012-000400,75 kW4,0 AM751-01200040A10100AB110
M751-012-000651,1 kW6,5 AM751-01200065A10100AB110
Type (frame 2)powerNominal currentpart nr.
M751-022-000902,2 kW9,0 AM751-02200090A10100AB110
M751-022-001202,2 kW12,0 AM751-02200120A10100AB110
Type (frame 3)powerNominal currentpart nr.
M751-032-001604,0 kW16,0 AM751-03200160A10100AB110




3 phase 380 - 480 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M751-014-000150,37 kW1,5 AM751-01400015A10100AB110
M751-014-000300,75 kW3,0 AM751-01400030A10100AB110
M751-014-000421,5 kW4,2 AM751-01400042A10100AB110
Type (frame 2)powerNominal currentpart nr.
M751-024-000602,2 kW6,0 AM751-02400060A10100AB110
M751-024-000803,0 kW8,0 AM751-02400080A10100AB110
M751-024-001054,0 kW10,5 AM751-02400105A10100AB110
Type (frame 3)powerNominal currentpart nr.
M751-034-001355,5 kW13,5 AM751-03400135A10100AB110
M751-034-001605,5 kW16,0 AM751-03400160A10100AB110

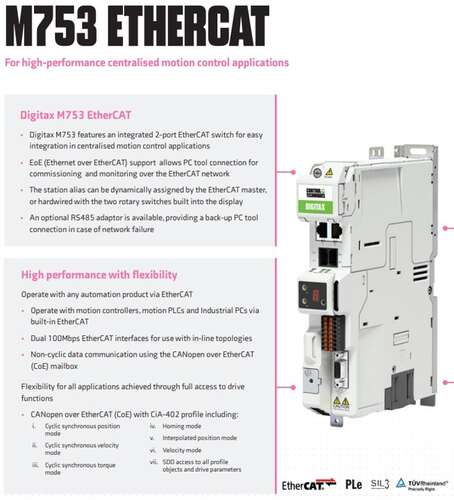

1 fase 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M753-012-000220,18 kW1,1 AM753-01200022A10100AB101
M753-012-000400,37 kW2,2 AM753-01200040A10100AB101
M753-012-000650,75 kW3,5 AM753-01200065A10100AB101
Type (frame 2)powerNominal currentpart nr.
M753-022-000901,1 kW5,6 AM753-02200090A10100AB101
M753-022-001201,5 kW7,5 AM753-02200120A10100AB101
Type (frame 3)powerNominal currentpart nr.
M753-032-001602,2 kW10,8 AM753-03200160A10100AB101




3 fasen 200 - 240 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M753-012-000220,37 kW2,2 AM753-01200022A10100AB101
M753-012-000400,75 kW4,0 AM753-01200040A10100AB101
M753-012-000651,1 kW6,5 AM753-01200065A10100AB101
Type (frame 2)powerNominal currentpart nr.
M753-022-000902,2 kW9,0 AM753-02200090A10100AB101
M753-022-001202,2 kW12,0 AM753-02200120A10100AB101
Type (frame 3)powerNominal currentpart nr.
M753-032-001604,0 kW16,0 AM753-03200160A10100AB101




3 fasen 380 - 480 Volt AC +/- 10%
Type (frame 1)powerNominal currentpart nr.
M753-014-000150,37 kW1,5 AM753-01400015A10100AB101
M753-014-000300,75 kW3,0 AM753-01400030A10100AB101
M753-014-000421,5 kW4,2 AM753-01400042A10100AB101
Type (frame 2)powerNominal currentpart nr.
M753-024-000602,2 kW6,0 AM753-02400060A10100AB101
M753-024-000803,0 kW8,0 AM753-02400080A10100AB101
M753-024-001054,0 kW10,5 AM753-02400105A10100AB101
Type (frame 3)powerNominal currentpart nr.
M753-034-001355,5 kW13,5 AM753-03400135A10100AB101
M753-034-001605,5 kW16,0 AM753-03400160A10100AB101




  • 0.7 Nm - 51 Nm with 153 Nm peak
  • 1.5 A – 16 A with 48 A peak
  • 200 V | 400 V
  • 0.25 kW - 7.5 kW

Reduce cost with small servo drives

Minimal footprint and exceptional power density make Digitax HD one of the smallest servo drives on the market today. This means that you can build the most compact cabinets possible.

  • Drive width of only 40mm
  • Reduce cabinet height with UltraFlow™ technology which dissipates heat directly outside of the cabinet
  • Install Digitax HD in a cabinet just 200mm deep

REDUCE COST AND MAXIMIZE YOUR FLOOR SPACE

Boost throughput with maximum motion control

Optimized for high-dynamic applications and with high speed control loops, Digitax HD is one of the best performing servo drives on the market today. This means maximum throughput and product quality from your machines.

  • 300% peak current performance pulse-duty overload
  • Optimized control loops for high dynamic performance
  • Up to 16 kHz switching frequency

Rapid installation and commissioning from standalone to a modular servo system

Digitax HD servo series can be used standalone and is also fast and easy to set up as a modular system.

  • Single AC input, 24v and communication links, and common DC bus
  • DIN rail alignment, single cable technology and easy access pluggable connectors
  • Fast programming and commissioning PC tools

Global reach, local support

Highly experienced, locally based Application Engineers design and support drive technology to provide maximum value, wherever you are in the world. Are you ready to find out how the narrowest servo drive on the market will serve all your automation needs?





Specifications

Level
box
Motor phase current
16 A
Supplier
Nidec Control Techniques

Documents

We collected the following documentation as PDF-File, that you can access by clicking on the icons.

If you have searched for info  but is not listed, or not completely answering your requirements, perhaps the document you are looking for is not public.

In that case, please contact us by using the following means:

FLI_M700_SERVO (5.1 MB) SEL-M700 (2.0 MB)
Most of our products can be customized, please contact us Contact
